Breaking Boundaries

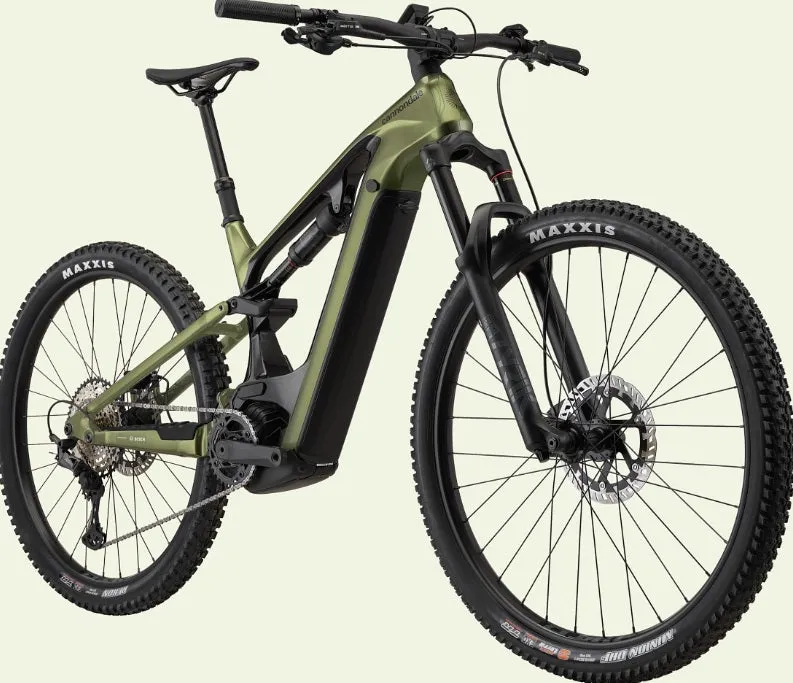

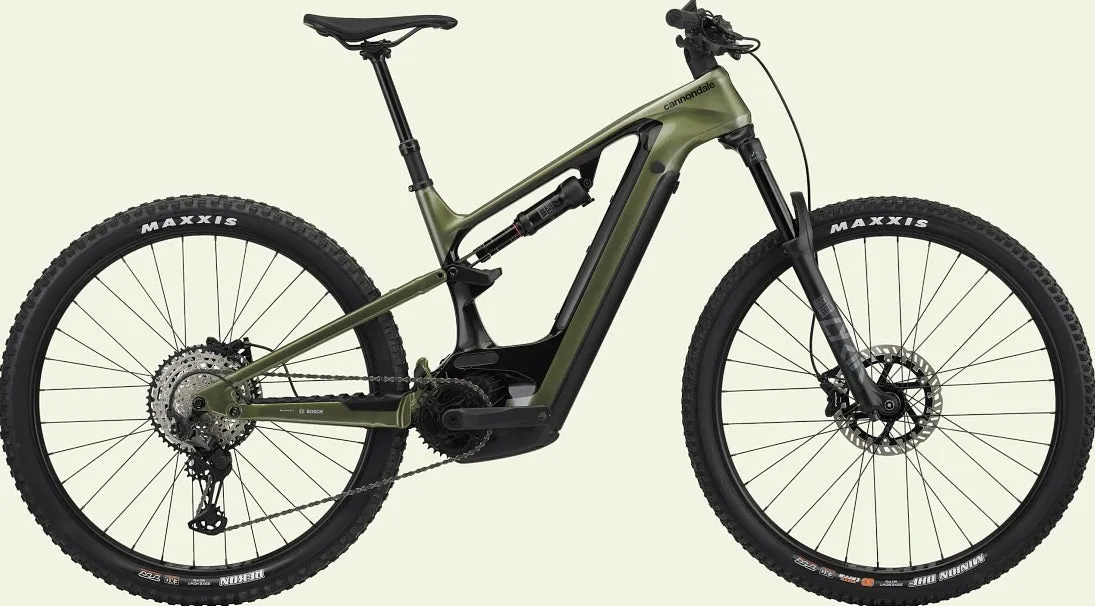

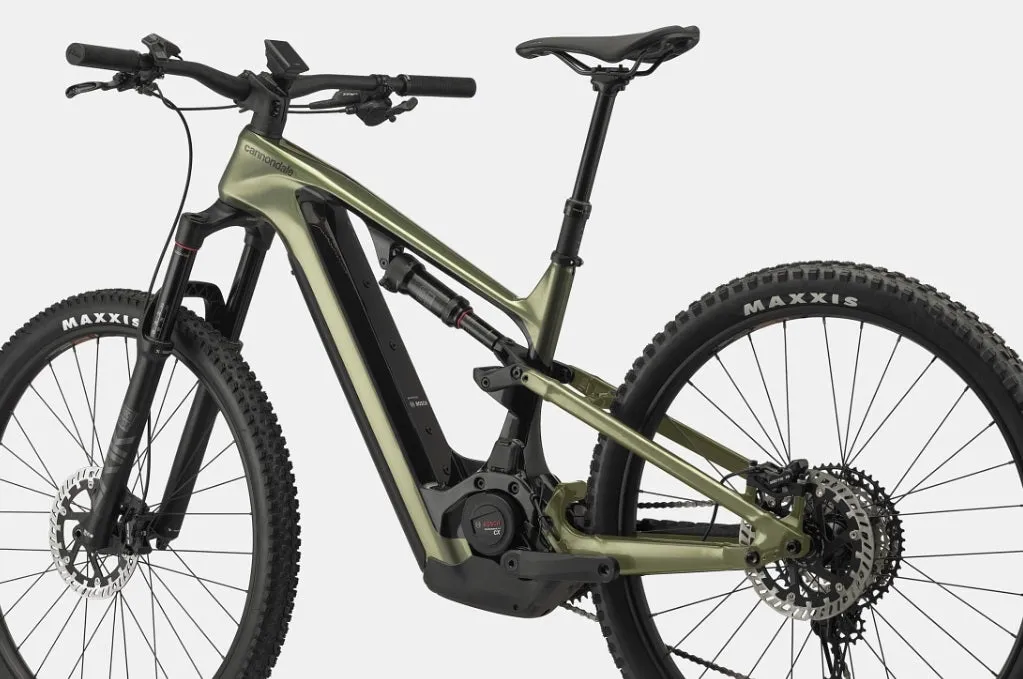

The Cannondale Moterra 2 Carbon Full Suspension E-Mountain Bike is a dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach for the Cannondale Moterra 2.
The Cannondale Moterra 2 Carbon Full Suspension E-Mountain Bike thrives on challenging trails, up and down hills, and out in the elements. The Cannondale Moterra 2 is built for incredible handling, traction, efficiency, and durability.
Highlights
- Proportional Response Tuned carbon frame / RockShox Lyrik Select fork, 150mm travel
- Bosch SmartSystem - 750wh battery & Performance CX motor
- Shimano XT/SLX 12-speed drivetrain
Specifications
- Platform - Moterra Neo
- Model Name - Moterra Carbon 2
- Model Code - C25272U
Frameset

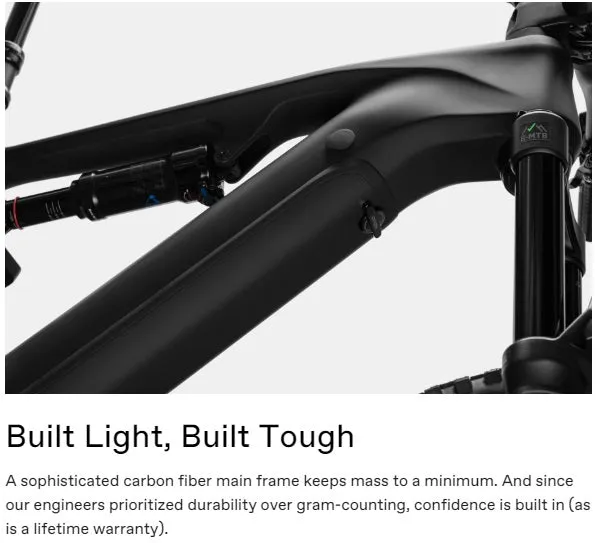

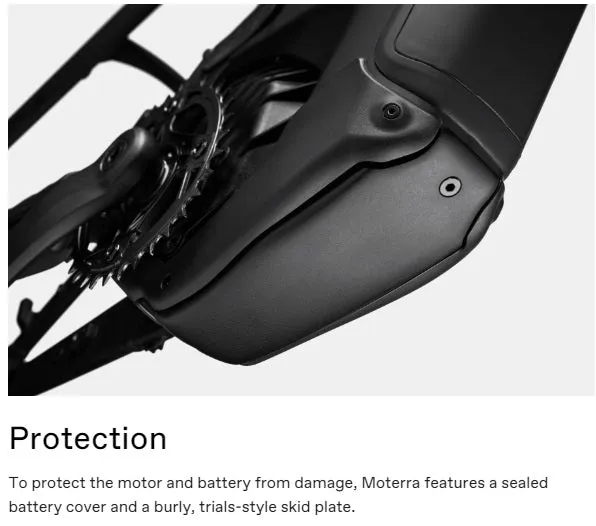

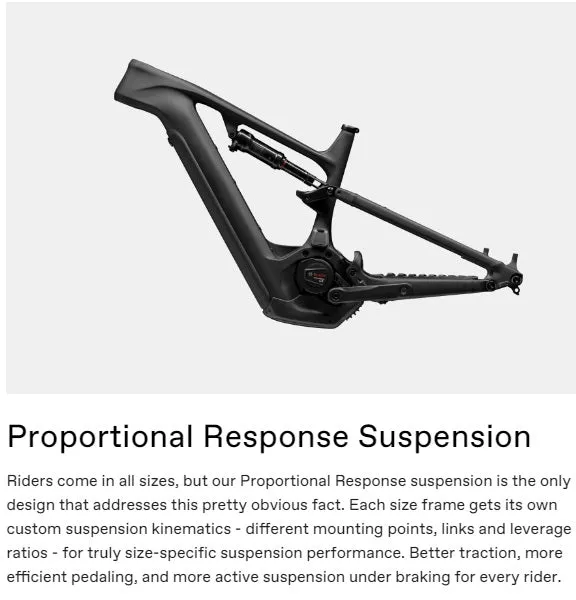

- Frame - Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
- Fork - RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
- Headset - Acros integrated sealed bearing, tapered

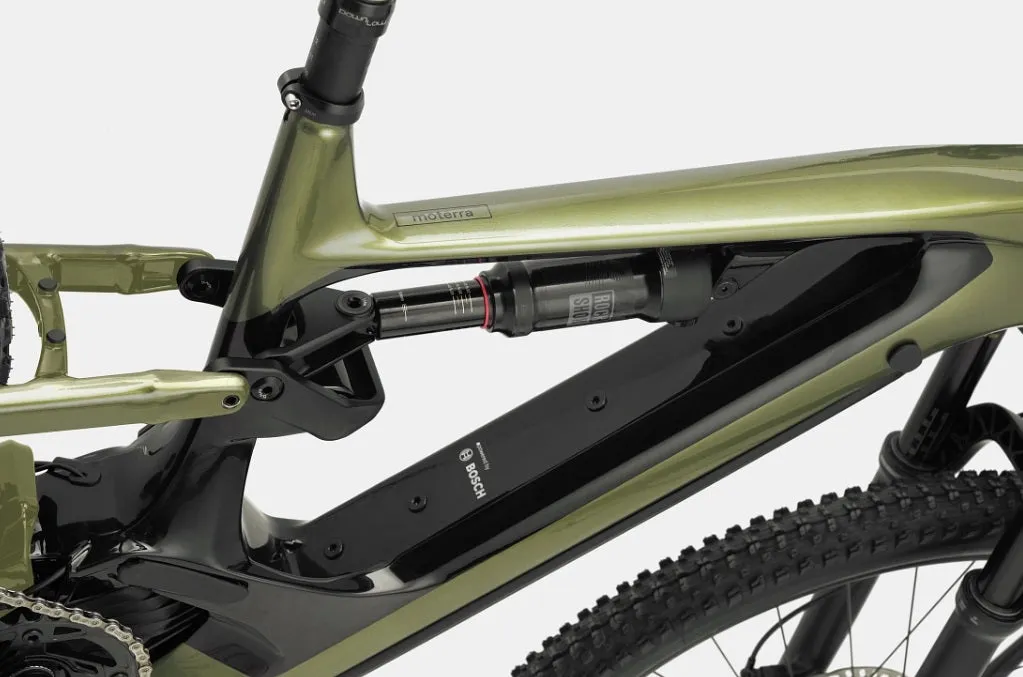

- Rear Shock - RockShox Deluxe Select , DebonAir, 2-Pos mode adjust, adjustable rebound
E-System

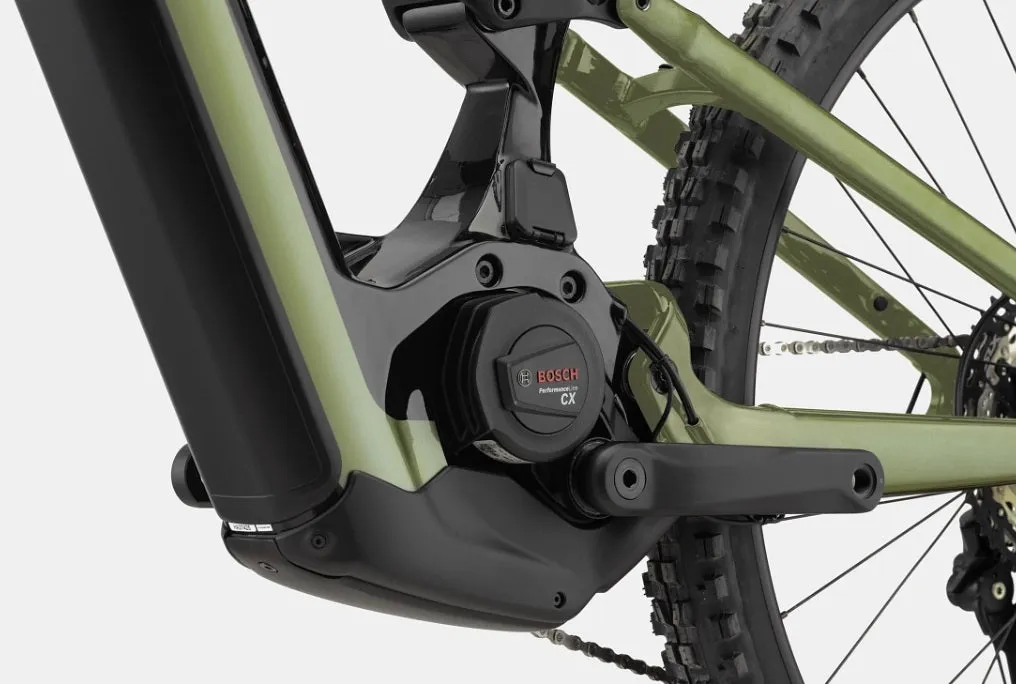

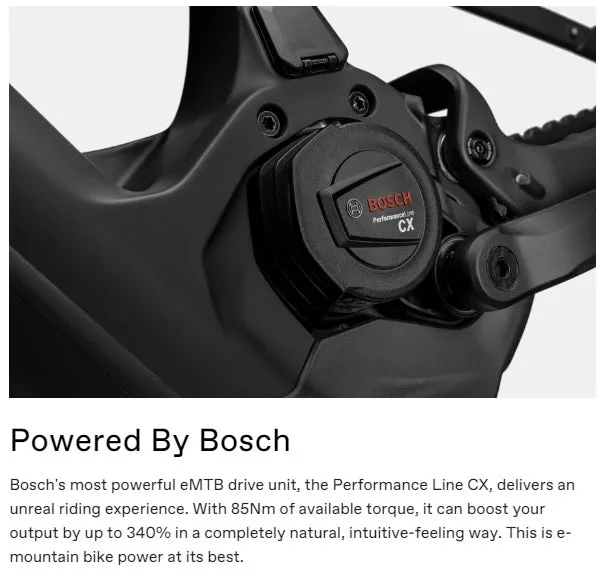

- Drive Unit - Bosch Performance Line CX 250W

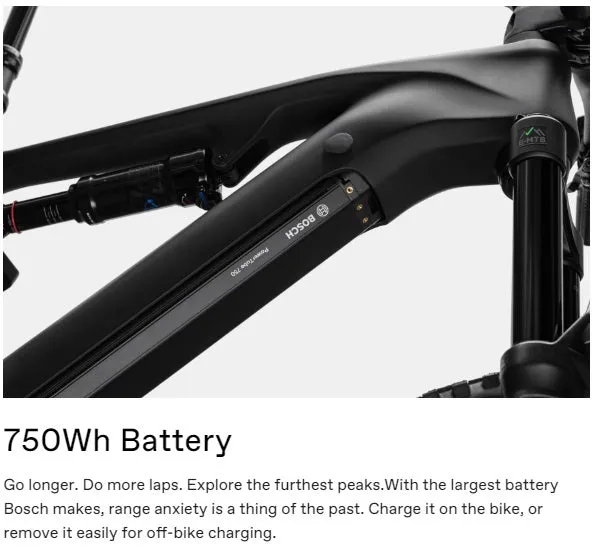

- Battery - Bosch PowerTube, 750Wh
- Charger - Bosch 4A

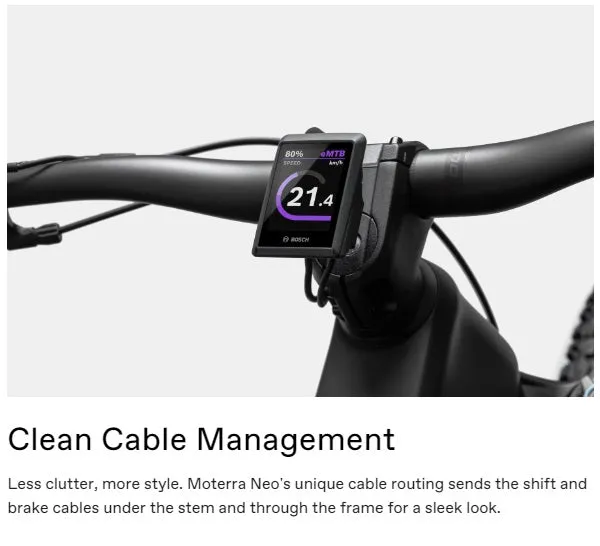

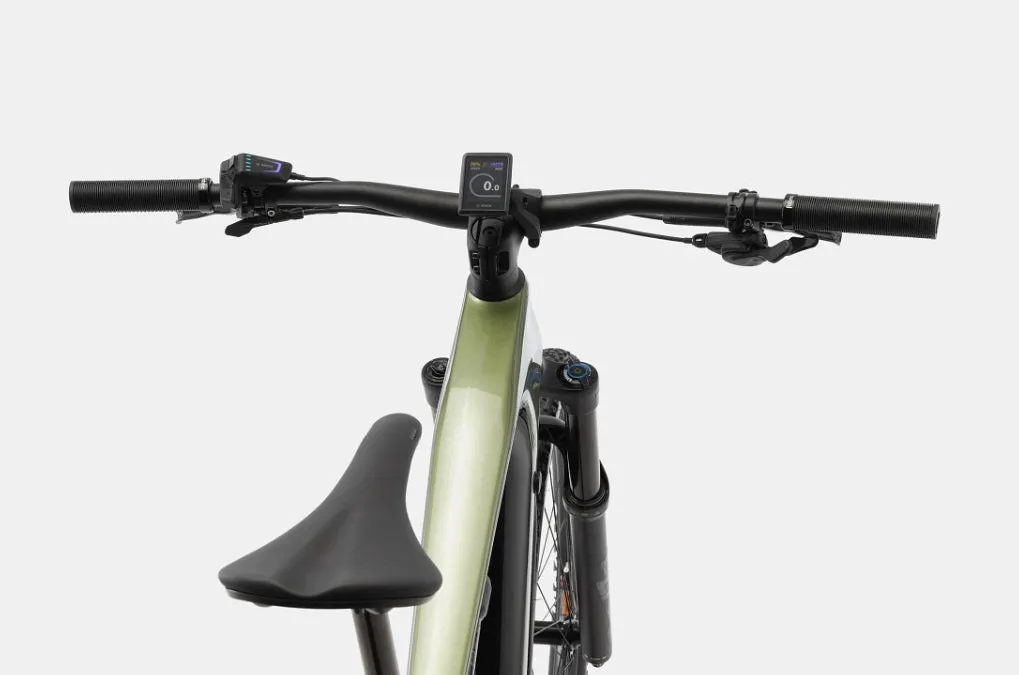

- Display - Bosch Kiox 300 w/ LED remote
- Certifications - UL 2849
Drivetrain

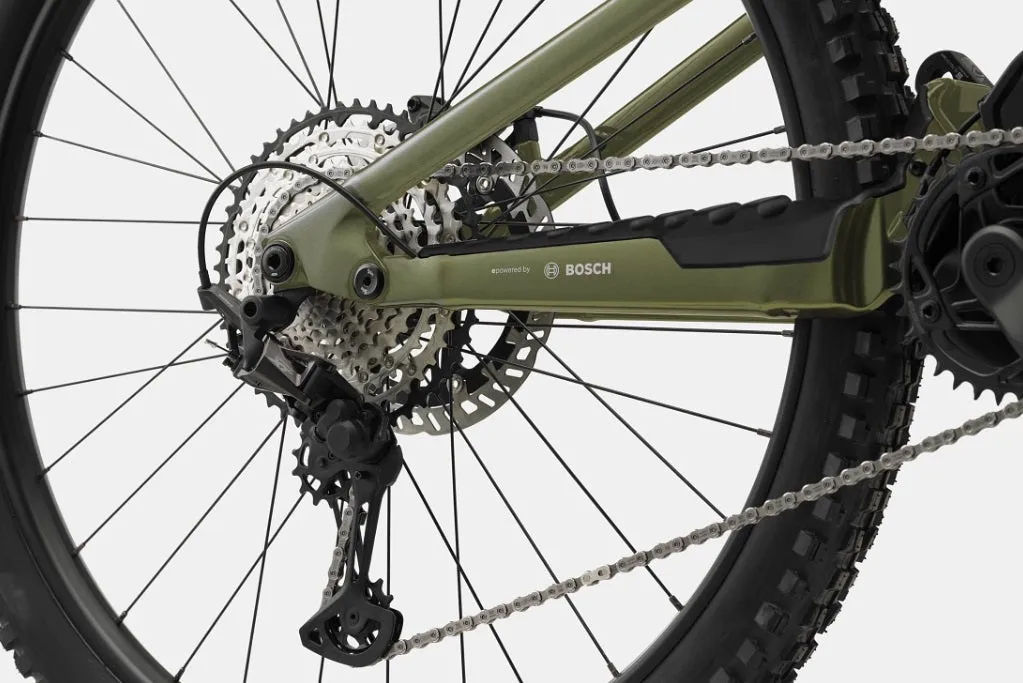

- Rear Derailleur - Shimano XT
- Shifters - Shimano SLX, 12-speed
- Chain - Shimano SLX, 12-speed
- Crank - FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
- Rear Cogs - Shimano SLX, 10-51, 12-speed
Brakes
- Brakes - Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
- Brake Levers - Shimano MT501 hydraulic disc
Wheels
- Rims - WTB ST i30 TCS, 32h, tubeless ready
- Spokes - DT Swiss Champion
- Tire Size - 2.6
- Wheel Size - 29
- Hubs - (Front) - Formula 15x110mm thru-axle / (Rear) - Shimano MT410, 12x148mm thru-axle
- Tires - (Front) - Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (Rear) - Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
Components

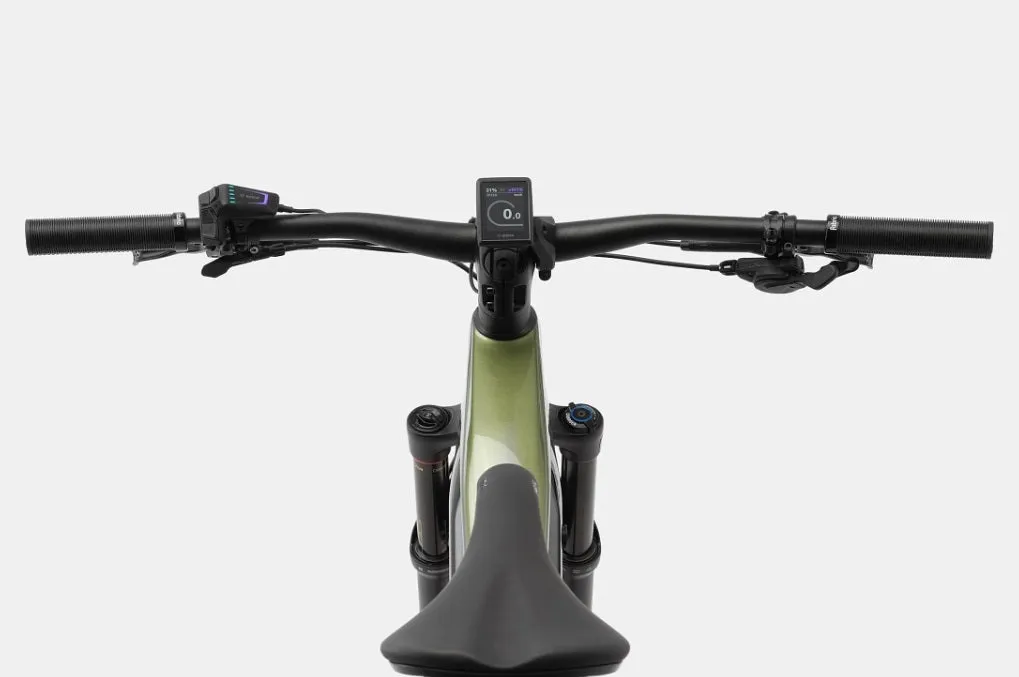

- Handlebar - Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
- Stem - Cannondale 2, 6061 Alloy, 35mm, 0°
- Grips - Fabric FunGuy
- Saddle - Fabric Scoop Shallow Sport, steel rails
- Seatpost - Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
Extra
- Extra 1 - Pre-installed light cable
*Specifications subject to change without notice
